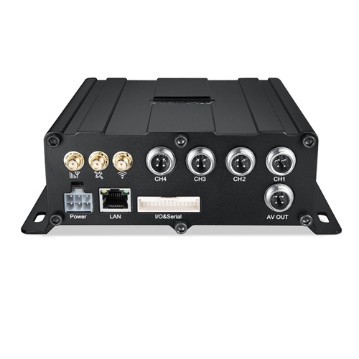

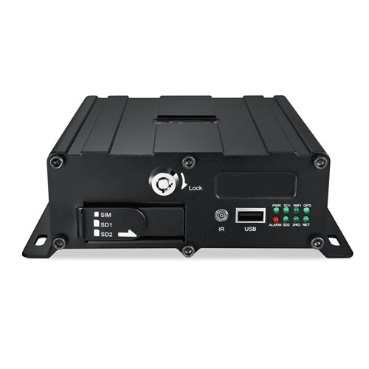

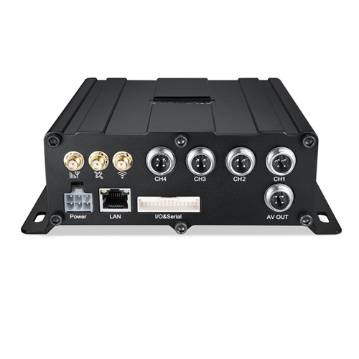

ON-VEHICLE RECORDER:

Front, Mid and Rear CAMERA:

  • Compact, fanless design: 6 ¾ X 6 ½ X 2 ¼ inch
  • Black Aluminum housing
  • AHD 720p- 4 channel camera recording
  • event, shock triggered recording or continuous recording
  • recording on SD cards, up to 2 x 256 GB (= several days of continuous recording)

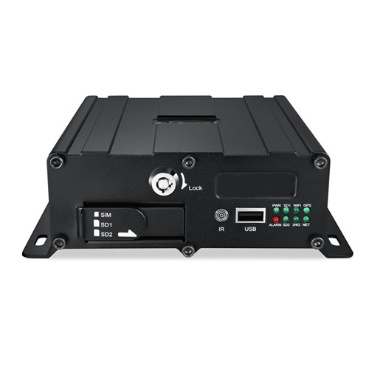

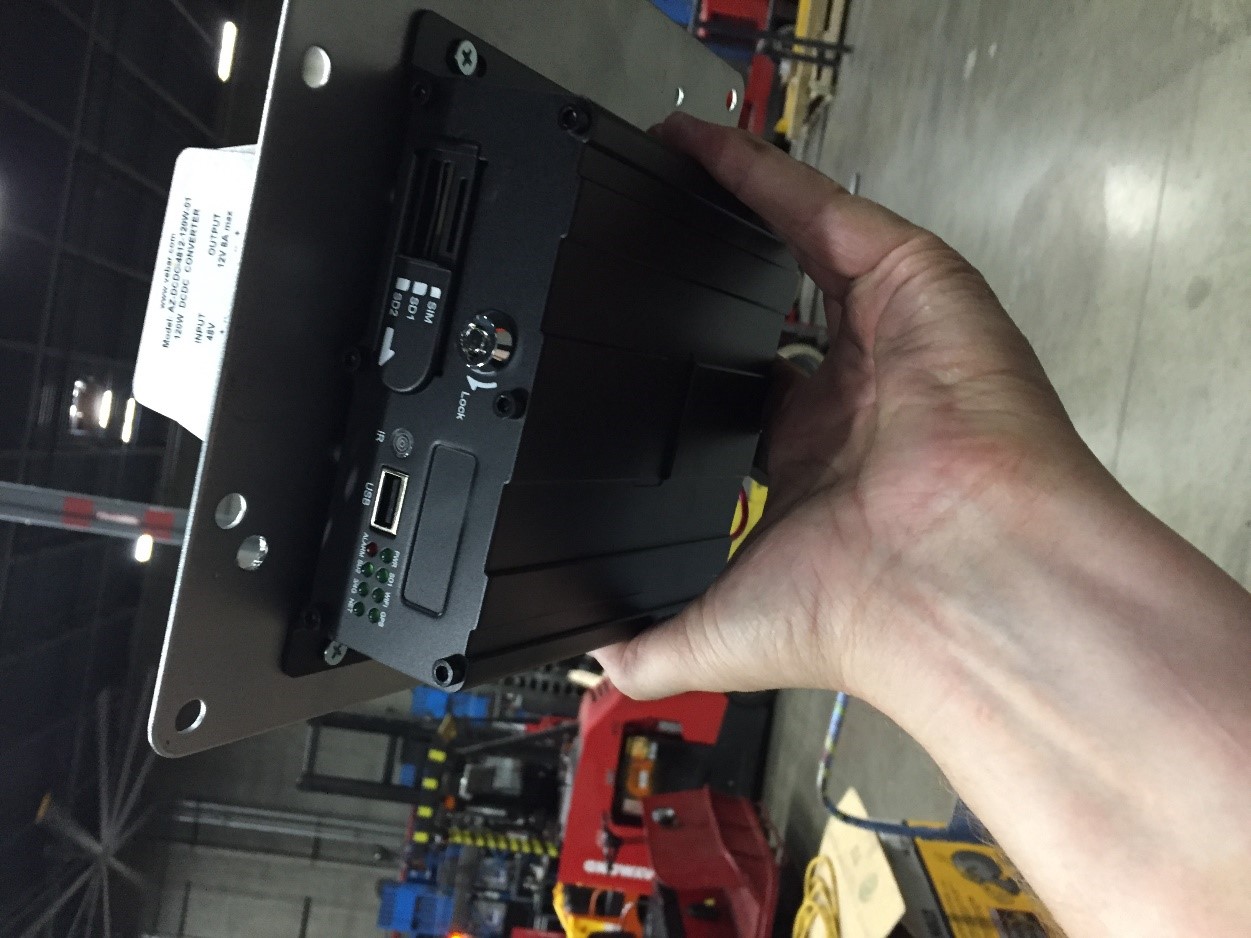

  • SD cards are behind locked door, unavailable for vehicle operators.
  • local or remote viewing of recorded video with special decryption software.
  • settings for local & wireless streaming
  • serial port, front panel USB
  • recording continues seconds after lost power
  • on-board shock sensor
  • simultaneous recording and playback
  • i/o interface, alarm in- and outputs
  • internal GPS module.
  • optional Wi-Fi, 4G communication
  • optional remote wireless shock sensor
  • optional on-board monitor (video replay & camera)

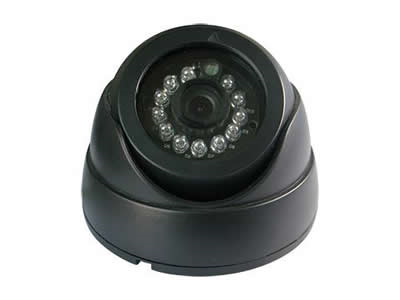

  • 1 Megapixel 1/4 Sony CMOS AHD
  • 3.6 mm lens
  • Infrared lights
  • minimum needed only 0.1 Lux at F1.2
  • High quality vehicle camera, metal casing.
  • IP67 water proof.
  • Viewing angle: 90 degrees.

WHY DO YOU NEED IT

Monitoring saves lives, results in fewer accidents and improves your bottom line – immediately.

According to the National Safety Council, the average direct cost of a forklift accident that causes an injury is $38,000. But the indirect costs, like lost work time, are almost 4x greater: $150,000.

Installing cameras on your vehicles, positively changes the behavior of your drivers. They become more aware of their responsibility and realize that immature and unsafe behavior is now recorded and can be seen by management.

For a grand total of $188,000. Jun 15, 2018

Forklift Turnovers, Worker Struck by Forklift, Victim Crushed by Forklift, Falls from Forklifts, Failure to Inspect or Perform Proper Maintenance

Be confident to meet your OSHA inspector.

OPTIONS & ACCESSORIES

BENEFITS

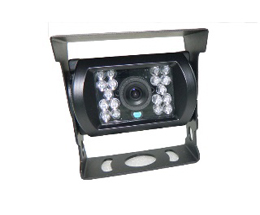

  • Front Camera:    OH-HW-FRC-3.6-M12

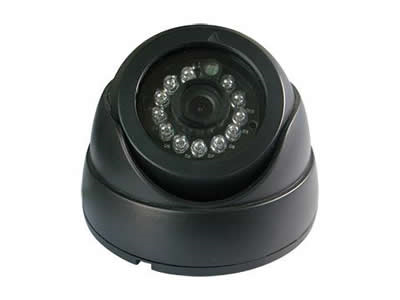

  • Mid Camera:      OH-HW-DOC-2.1-M12

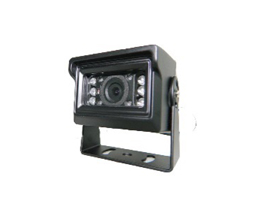

  • Rear Camera:    OH-HW-FRC-3.6-M12

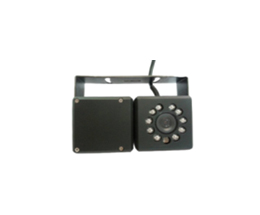

  • Dual Lens camera: OH-HW-2LC-3.6-M12
  • Extension cable for cameras: OH-HW-CEC-XXX

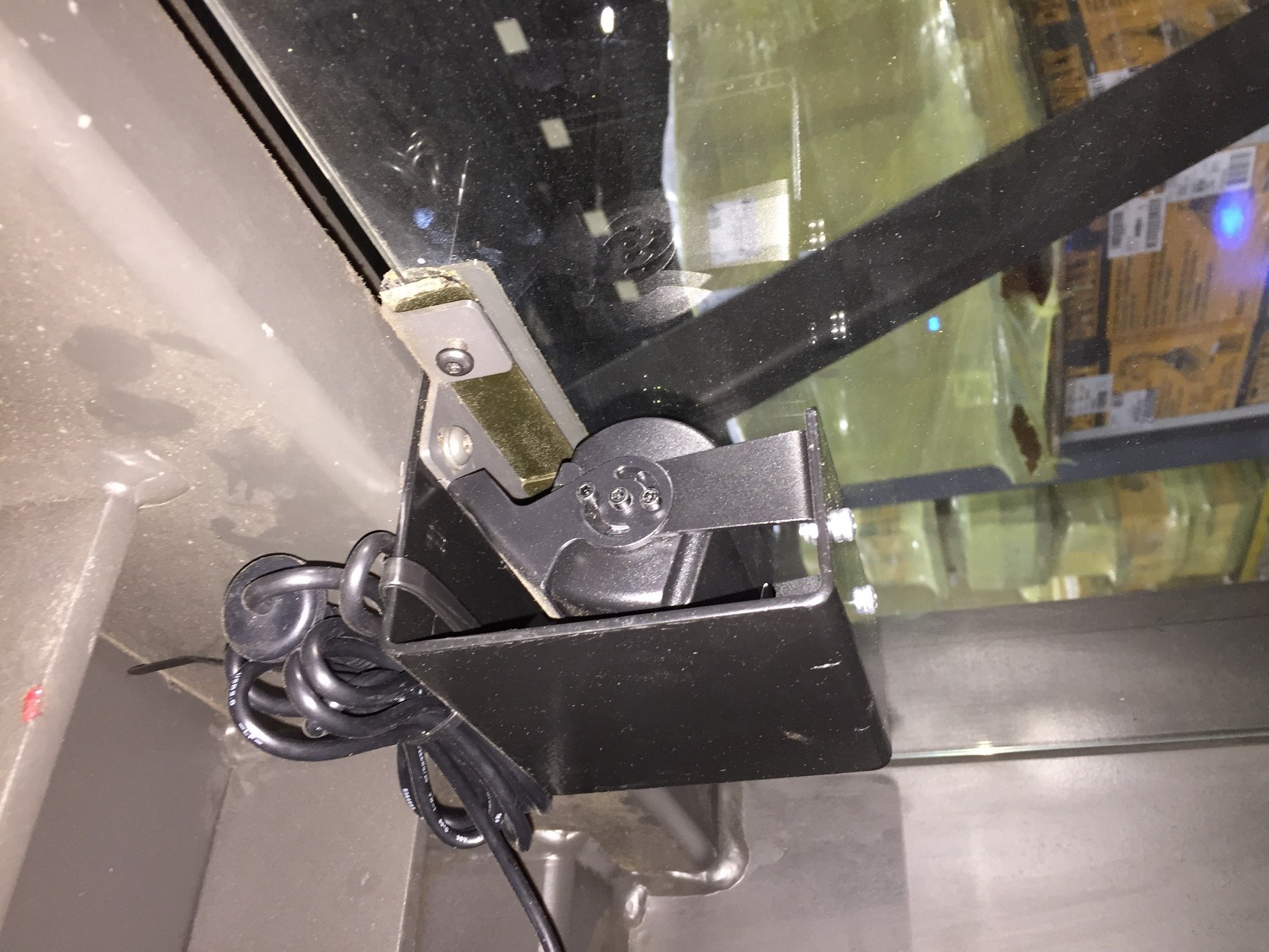

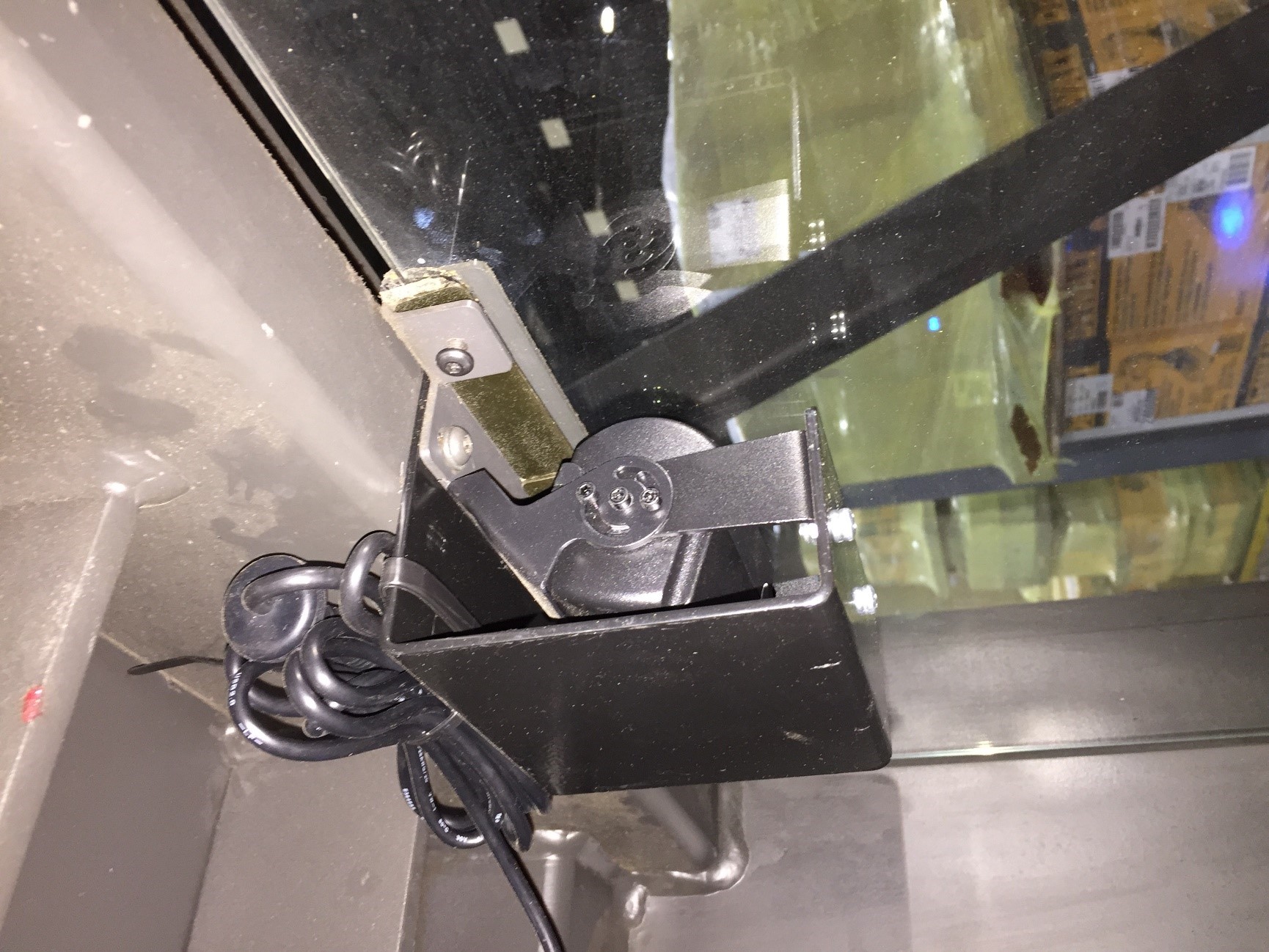

  • U shaped bracket for Rear Camera: VB-HW-BR-010
  • Flat mounting plate: VB-HW-MPL-001

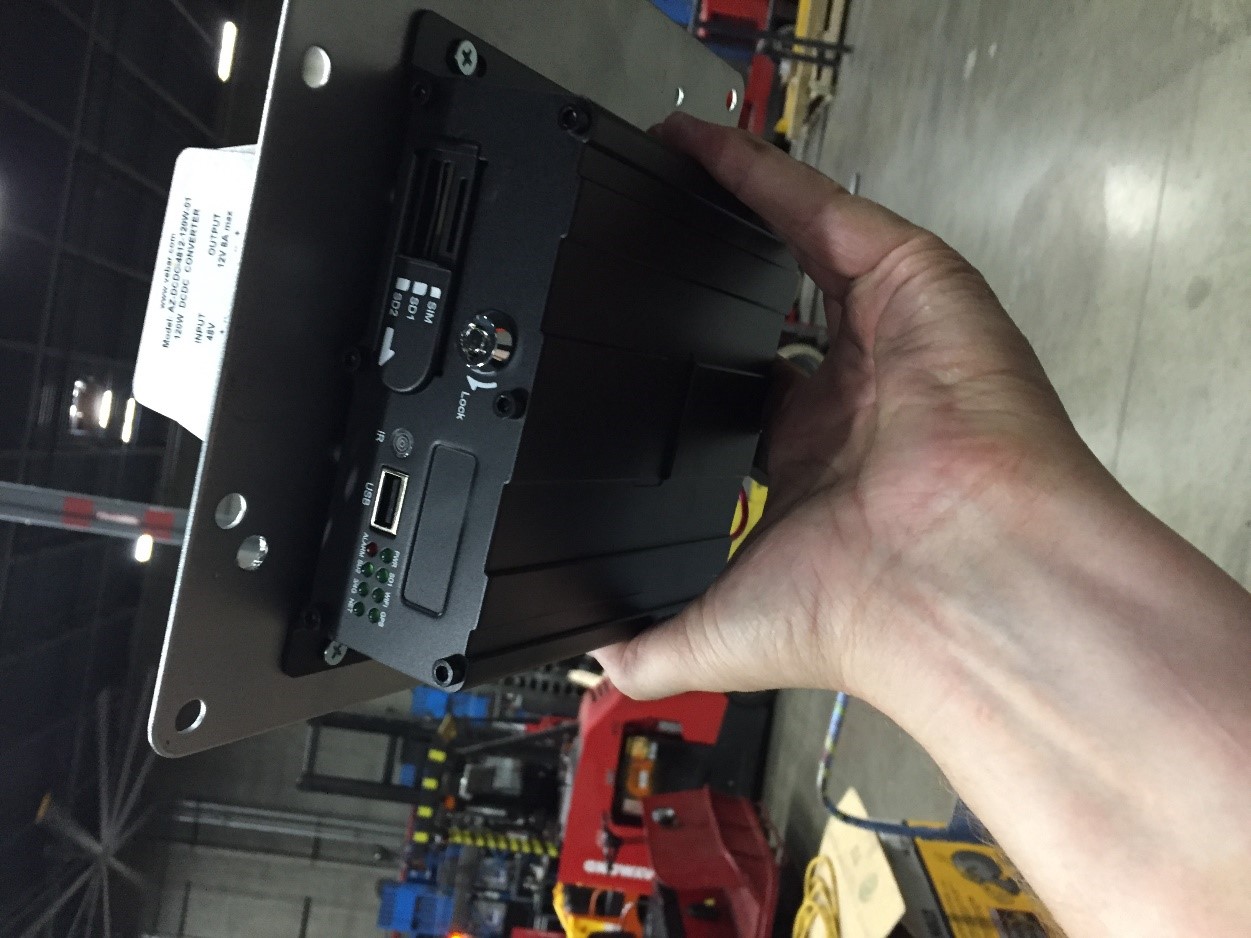

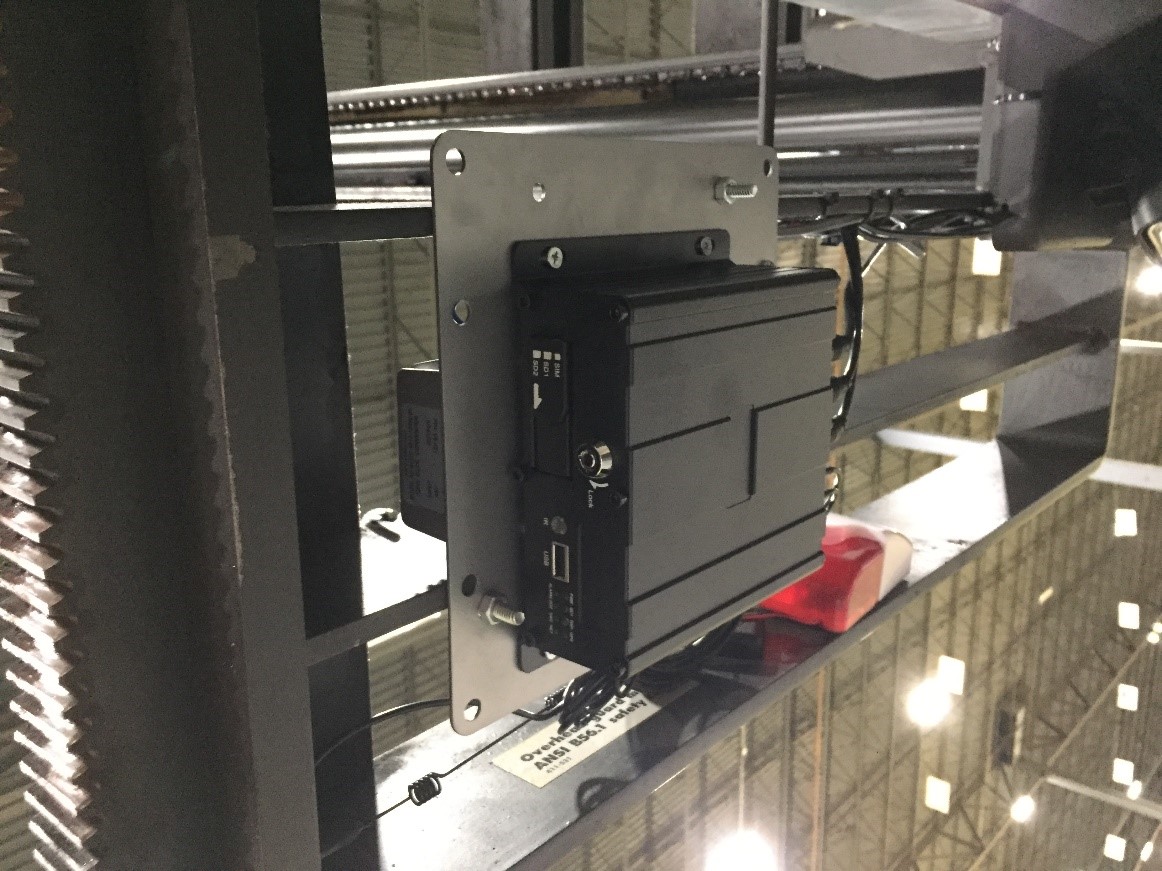

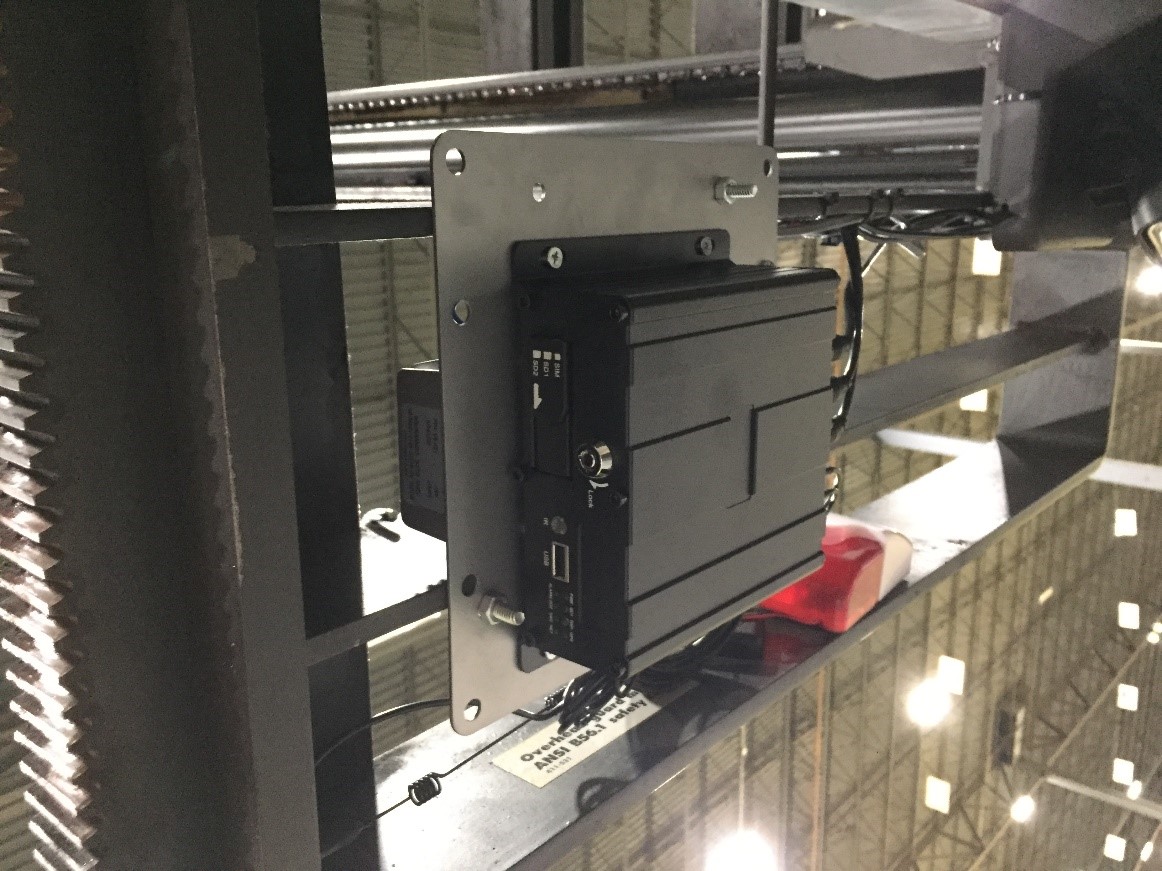

    • Pre-perforated metal plate, black powder coated. 8 ¾ * 8 ¾ inch.

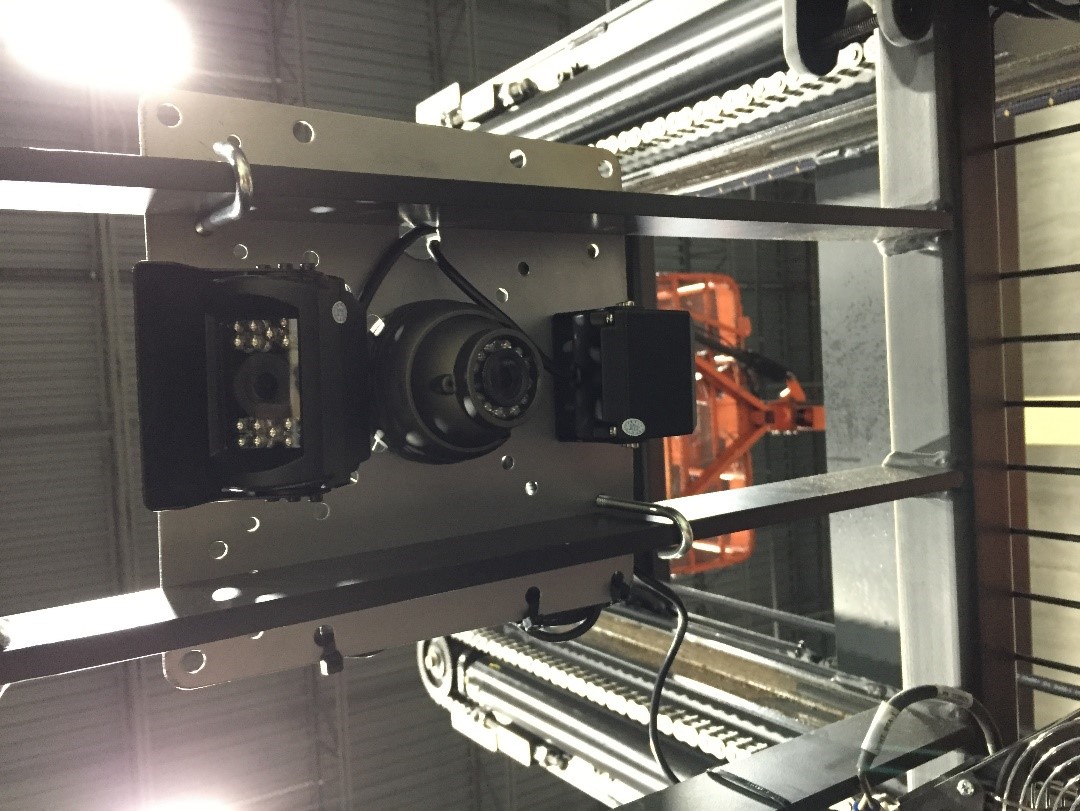

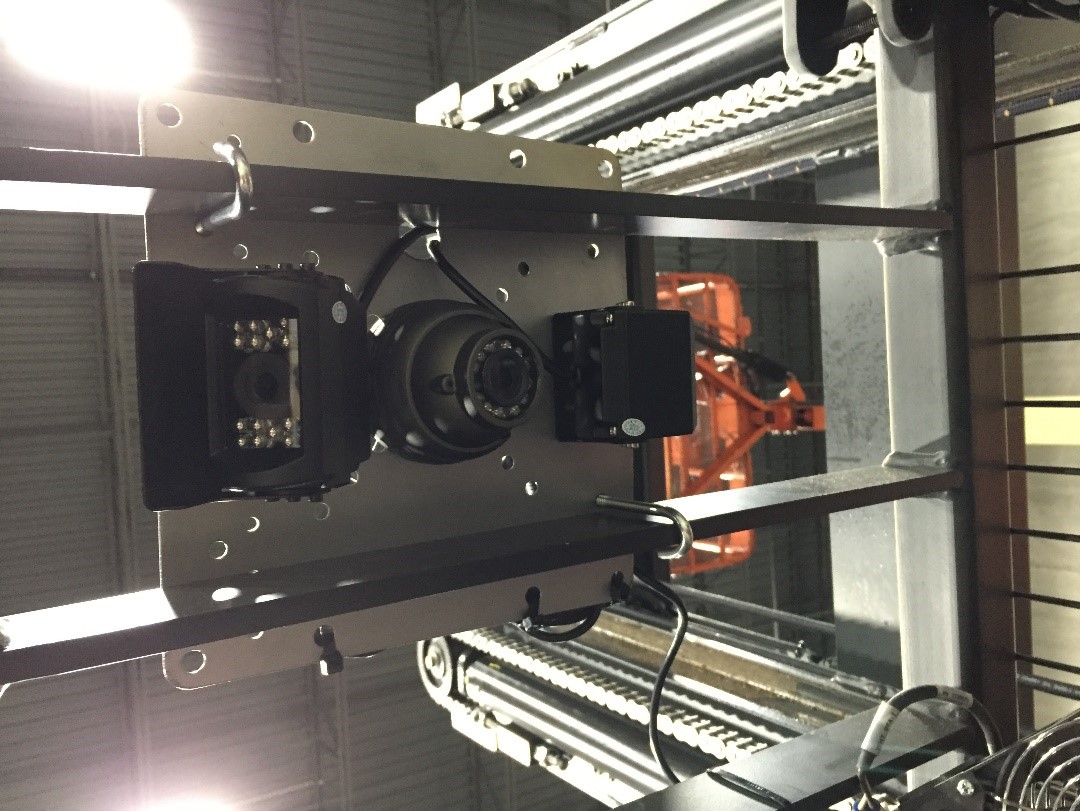

    • * used to mount DVR device, DCDC converter & siren on most trucks. used to mount up to 3 Vebar cameras
  • Other Camera Brackets available: contact us.

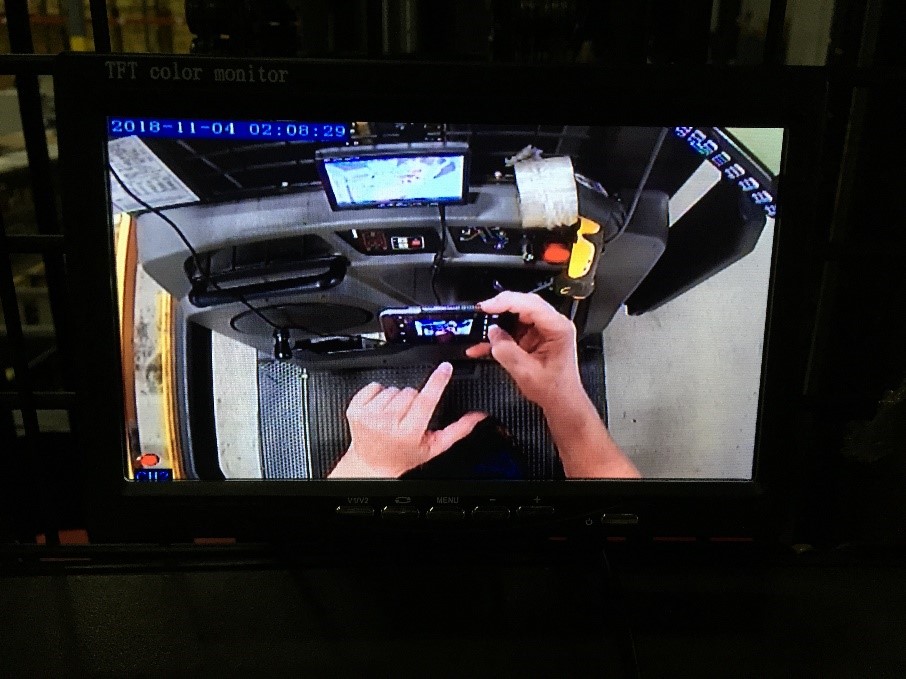

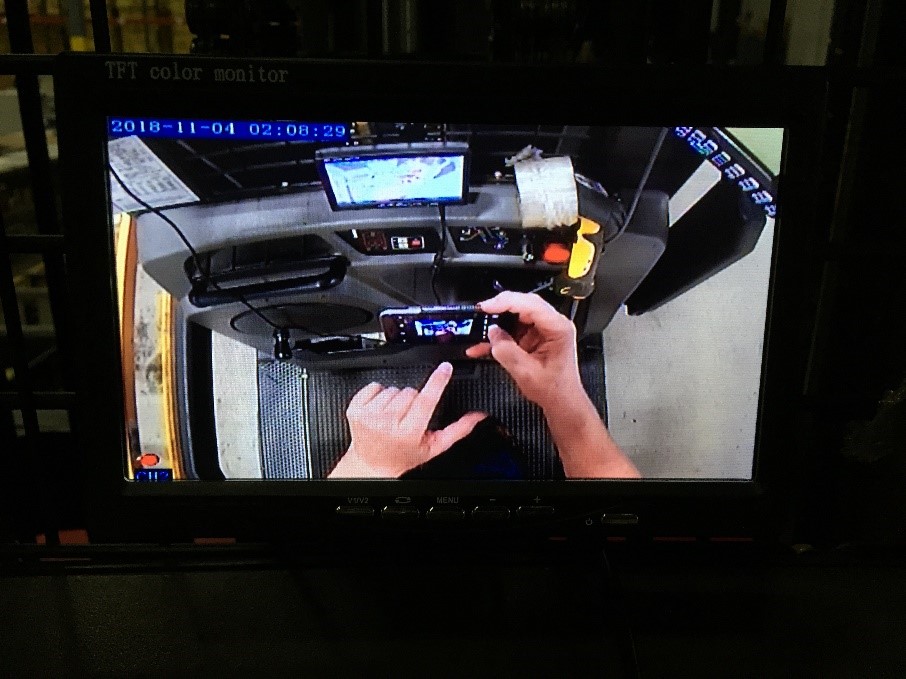

  • LCD Monitor: (settings & video play): OH-HW-7MO-M12

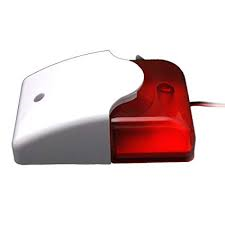

  • Siren & flashlight: AB-HW-SIR-001
  • SD cards: SD-064-90MBS   /   SD-128-90MBS
  • Wireless shock sensor: OH-HW/SW-WGS-002
  • DC-DC converter: MM-HW-IDC-19/74-12-3A converts 17-73V input to 12V output 40 Watt – Isolated.
  • 4G Cellular:  Vebar provides Hardware & data plans.
  • This recorder was developed to provide evidence of events leading up to and during equipment accidents.
  • One of the most versatile on-vehicle camera recording solutions on the market.
    Economical and OEM-neutral, can be installed on any Vehicle.
  • Make sure your operator cannot get away without reporting incidents or accidents:
    The built-in or (optional) external shock sensor triggers an optional external alarm, and triggers storage of recordings on up to 4 cameras, 60 seconds before, during and after incidents.
  • Continuous recording can be selected; Many settings are available in the programming menu.
  • Easy viewing of SD recordings on the recorder with optional connected lcd screen, or view the SD cards’ recordings on your computer with the free decryption software.
  • When network connected, you can watch your vehicle cameras in real time on your smartphone, tablet or desktop. (*)
  • Future proof: soon your existing Vebar recording units will be capable to upload alerts and captured video to the Vebar connect portal and will provide notifications to supervisors and safety managers.
  • No servers to setup or maintain.
